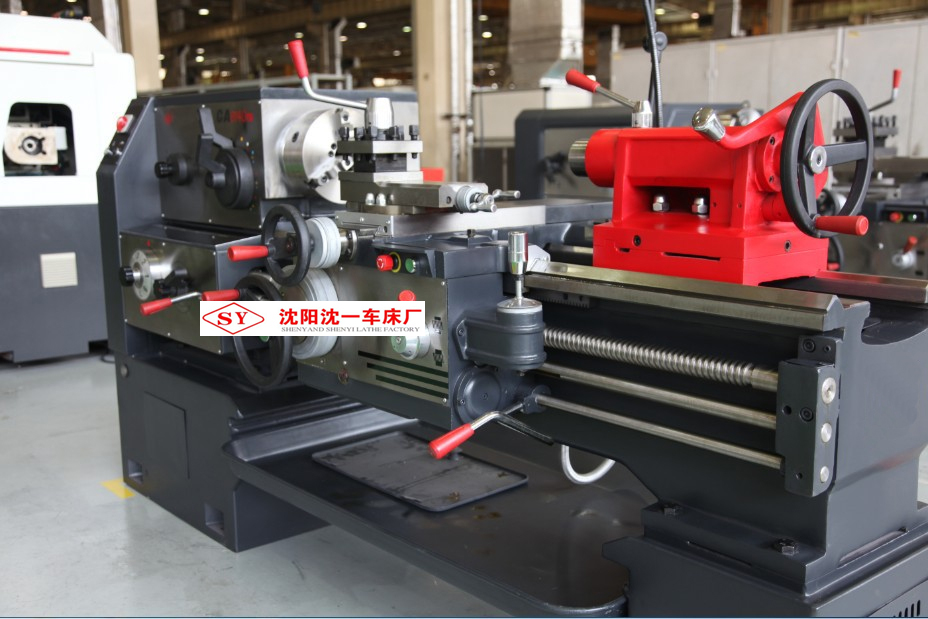

大孔车床 马鞍车床
咨询服务热线： 13149857878
| 项目 | 单位 | CA6140B/A | CA6240B/A | CA6150B/A | CA6250B/A | CA6161B/A | CA6261B/A |
| 床身上回转直径 | mm | φ400(16") | φ400(16") | φ500(20") | φ500(20") | φ610(24") | φ610(24") |
| 刀架上回转直径 | mm | φ210 | φ210 | φ300 | φ300 | φ370 | φ370 |
| (8 1/4") | (8 1/4") | (12") | (12") | (14 9/16 ") | (14 9/16 ") |
| 马鞍内回转直径× | mm |
| φ630(25") |
| φ720(28") |
| φ830 |
| 有效宽度 | ×210 | ×210 | (32 2/3 ") |
|
|
| ×210 |
| 二顶尖间长度 | mm | 750/1000/ | 750/1000/ | 750/1000/ | 750/1000/ | 750/1000/ | 750/1000/ |
| 1500/2000/ | 1500/2000/ | 1500/2000/ | 1500/2000/ | 1500/2000/ | 1500/2000/ |
| 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| (29"/40"/ | (29"/40"/ | (29"/40"/ | (29"/40"/ | (29"/40"/ | (29"/40"/ |
| 60"/118") | 60"/118") | 60"/118") | 60"/118") | 60"/118") | 60"/118") |
| 床身宽度、硬度 | mm | 400、RC52 | 400、RC52 | 400、RC52 | 400、RC52 | 400、RC52 | 400、RC52 |
| 刀杆截面 | mm | 25×25 | 25×25 | 25×25 | 25×25 | 25×25 | 25×25 |
| 主轴 |
|
|
|
|
|
|
|
| 主轴转速范围(级数) |
|
|
|
|
|
|
|
| 正传 | r/min | 10-1400 | 10-1400 | 10-1400 | 10-1400 | 10-1400 | 10-1400 |
| (24 kinds) | (24 kinds) | (24 kinds) | (24 kinds) | (24 kinds) | (24 kinds) |
| 反转 | r/min | 14-1580 | 14-1580 | 14-1580 | 14-1580 | 14-1580 | 14-1580 |
| (12 kinds) | (12 kinds) | (12 kinds) | (12 kinds) | (12 kinds) | (12 kinds) |
| 主轴内孔直径 | mm | φ80 | φ80 | φ80 | φ80 | φ80 | φ80 |
| (3 9/64") | (3 9/64") | (3 9/64") | (3 9/64") | (3 9/64") | (3 9/64") |
| 主轴头型式 | mm | A28 | A28 | A28 | A28 | A28 | A28 |
| 前主轴孔锥度 |
| φ90(1:20) | φ90(1:20) | φ90(1:20) | φ90(1:20) | φ90(1:20) | φ90(1:20) |
| 进给 |
|
|
|
|
|
|
|
| 进给数量 |
| 64 kinds | 64 kinds | 64 kinds | 64 kinds | 64 kinds | 64 kinds |
| (for each) | (for each) | (for each) | (for each) | (for each) | (for each) |
| 主轴每转纵向进给 |
|
|
|
|
|
|
|
| 标准 | mm/r | 0.11-1.6 | 0.11-1.6 | 0.11-1.6 | 0.11-1.6 | 0.11-1.6 | 0.11-1.6 |
| 小进给 | mm/r | 0.028-0.11 | 0.028-0.11 | 0.028-0.11 | 0.028-0.11 | 0.028-0.11 | 0.028-0.11 |
| 加大进给 | mm/r | 1.76-6.4 | 1.76-6.4 | 1.76-6.4 | 1.76-6.4 | 1.76-6.4 | 1.76-6.4 |
| 主轴每转横向进给 |
|
|
|
|
|
|
|
| 标准 | mm/r | 0.05-0.8 | 0.05-0.8 | 0.05-0.8 | 0.05-0.8 | 0.05-0.8 | 0.05-0.8 |
| 小进给 | mm/r | 0.014-0.05 | 0.014-0.05 | 0.014-0.05 | 0.014-0.05 | 0.014-0.05 | 0.014-0.05 |
| 加大进给 | mm/r | 0.88-3.2 | 0.88-3.2 | 0.88-3.2 | 0.88-3.2 | 0.88-3.2 | 0.88-3.2 |
| 公制螺纹范围 | mm | 1-192 | 1-192 | 1-192 | 1-192 | 1-192 | 1-192 |
| (44 kinds) | (44 kinds) | (44 kinds) | (44 kinds) | (44 kinds) | (44 kinds) |
| 英制螺纹范围 | t.p.i | 2001-2-24 | 2001-2-24 | 2001-2-24 | 2001-2-24 | 2001-2-24 | 2001-2-24 |
| (28kinds) | (28kinds) | (28kinds) | (28kinds) | (28kinds) | (28kinds) |
| 模数螺纹范围 | mm | 0.25-48(module) | 0.25-48(module) | 0.25-48(module) | 0.25-48(module) | 0.25-48(module) | 0.25-48(module) |
| (39 kinds) | (39 kinds) | (39 kinds) | (39 kinds) | (39 kinds) | (39 kinds) |
| 径节螺纹范围 | D.P | 1/2-96 | 1/2-96 | 1/2-96 | 1/2-96 | 1/2-96 | 1/2-96 |
| (38 kinds) | (38 kinds) | (38 kinds) | (38 kinds) | (38 kinds) | (38 kinds) |
| 床鞍纵向快移速度 | m/min | 4 m/min | 4 m/min | 4 m/min | 4 m/min | 4 m/min | 4 m/min |
| 刀架横向快移速度 | m/min | 2 m/min | 2 m/min | 2 m/min | 2 m/min | 2 m/min | 2 m/min |
| 刀架转盘回转角度 | ° | ±90 | ±90 | ±90 | ±90 | ±90 | ±90 |
| 横刀架行程 | mm | 320 | 320 | 320 | 320 | 420 | 420 |
| (12 1/2") | (12 1/2") | (12 1/2") | (12 1/2") | (16 4/25") | (16 4/25") |
| 小刀架移动行程 | mm | 140 | 140 | 140 | 140 | 140 | 140 |
| (5 1/2") | (5 1/2") | (5 1/2") | (5 1/2") | (5 1/2") | (5 1/2") |
| 床尾 |
|
|
|
|
|
|
|
| 床尾主轴最大行程 | mm | 150 | 150 | 150 | 150 | 150 | 150 |
| (5 29/32") | (5 29/32") | (5 29/32") | (5 29/32") | (5 29/32") | (5 29/32") |
| 床尾主轴直径 | mm | φ75 | φ75 | φ75 | φ75 | φ75 | φ75 |
| (2 61/64") | (2 61/64") | (2 61/64") | (2 61/64") | (2 61/64") | (2 61/64") |
| 床尾主轴孔锥度 |
| 莫氏圆锥5号 | 莫氏圆锥5号 | 莫氏圆锥5号 | 莫氏圆锥5号 | 莫氏圆锥5号 | 莫氏圆锥5号 |
| 主电机 | kW | 7.5 (10 Hp) | 7.5 (10 Hp) | 7.5 (10 Hp) | 7.5 (10 Hp) | 7.5 (10 Hp) | 7.5 (10 Hp) |
| 净重/毛重 |
|
|
|
|
|
|
|
| 750mm | kg | 1990/2680 | 1990/2680 | 2060/2410 | 2060/2410 | 2180/3000 | 2180/3000 |
| 1000mm | kg | 2070/2760 | 2070/2760 | 2140/2830 | 2140/2830 | 2260/3200 | 2260/3200 |
| 1500mm | kg | 2220/3020 | 2220/3020 | 2290/3050 | 2290/3050 | 2437/3400 | 2437/3400 |
| 2000mm | kg | 2570/3420 | 2570/3420 | 2640/3490 | 2640/3490 | 2787/3800 | 2787/3800 |
| 3000mm |
|
|
|
|
| 3200/ | 3287/ |
| 轮廓尺寸/包装尺寸 |
|
|
|
|
|
|
|
| 750mm |
| 2418×1000 | 2418×1000 | 2418×1037 | 2418×1037 | 2418×1130 | 2418×1130 |
| ×1270/ | ×1270/ | ×1315/ | ×1315/ | ×1370/ | ×1370/ |
| 2600×1520 | 2600×1520 | 2600×1520 | 2600×1520 | 2600×1620 | 2600×1620 |
| ×2010 | ×2010 | ×2010 | ×2010 | ×2010 | ×2010 |
| 1000mm |
| 2668×1000 | 2668×1000 | 2668×1037 | 2668×1037 | 2668×1130 | 2668×1130 |
| ×1270/ | ×1270/ | ×1315/ | ×1315/ | ×1370/ | ×1370/ |
| 2850×1520 | 2850×1520 | 2850×1520 | 2850×1520 | 2850×1620 | 2850×1620 |
| ×2010 | ×2010 | ×2010 | ×2010 | ×2010 | ×2010 |
| 1500mm |
| 3168×1000 | 3168×1000 | 3168×1037 | 3168×1037 | 3168×1130 | 3168×1130 |
| ×1270/ | ×1270/ | ×1315/ | ×1315/ | ×1370/ | ×1370/ |
| 3350×1520 | 3350×1520 | 3350×1520 | 3350×1520 | 3350×1620 | 3350×1620 |
| ×2010 | ×2010 | ×2010 | ×2010 | ×2010 | ×2010 |
| 2000mm |
| 3668×1000 | 3668×1000 | 3668×1037 | 3668×1037 | 3668×1130 | 3668×1130 |
| ×1270/ | ×1270/ | ×1315/ | ×1315/ | ×1370/ | ×1370/ |
| 3850×1520 | 3850×1520 | 3850×1520 | 3850×1520 | 3850×1620 | 3850×1620 |
| ×2010 | ×2010 | ×2010 | ×2010 | ×2010 | ×2010 |
| 3000mm |
|
|
|
|
| 4668×1130 | 4668×1130 |
| ×1370/ | ×1370/
|
